All Products  ➞ Threaded Inserts ➞ PowerCoil® ➞ Hand Tools ➞ Hand Installation Tools

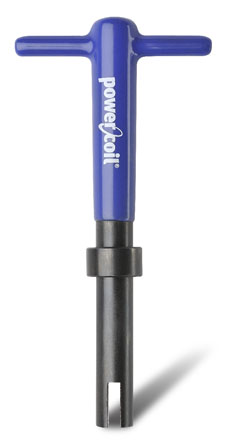

HIT16 PowerCoil Hand Installation Tool

Part Number:3500-HIT16
Brand:PowerCoil
Barcode:9326518065319
BSF:9/16X16
BSP:1/4X19
BSW:9/16X12
NPT:1/4X18
UNC:9/16X12
UNF:9/16X18
Metric Coarse:14X2.00, 15X2.00
Metric Fine:14X1.00, 14X1.50
Description:Hand installation tool - HIT16

About this item:
  • HIT16 PowerCoil Hand Installation Tool
  • Hand Installation Tools (HIT) are used to install reduced diameter free running wire thread inserts into the tapped hole.
  • The extensive range of hand installation tools suits insert sizes up to M36 and 2".
  • MIL spec inserts and Screw Locking inserts cannot be installed using a HIT. These inserts are installed using a Hand Installation Prewinder (HIP), Machine Installation Tool (MIT) or a Machine Installation Tool Pneumatic (MIP).
