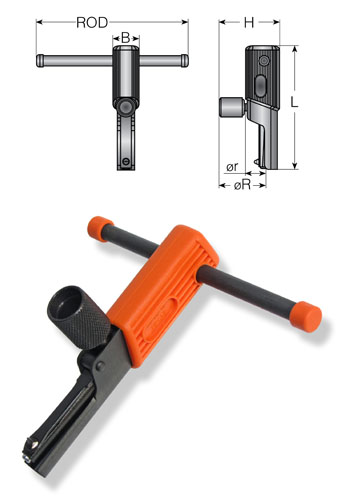

NES 22 Internal Thread Restorer suits sizes 12.00 - 16.00mm (1/2 - 5/8)
| Part Number: | 3507-NES22 |
| Brand: | NES |
| Barcode: | 60344607220 |
| B (mm): | 18 |
| H: | 45 |
| L: | 109 |
| Min - Max (inch): | 1/2 - 5/8 |
| Min - Max (mm): | 12.00 - 16.00 |
| ROD: | 136 |
| Type: | NES 22 |
About this item:
- NES 22 Internal Thread Restorer suits sizes 12.00 - 16.00mm (1/2 - 5/8)
- One NES tool restores Metric, Imperial, Right Hand and Left Hand threads and replaces many taps and/or dies.
- They do not require calibration.
- Self adjusting to any size and pitch within tool range.
- Hardened HSS cutting blades for long tool service life.
- Tool uses undamaged section of thread to guide cutting blades during repair to damaged areas.
- Removes rust and burrs.
- Quick to set up and simple to use.
- Spare cutting blades are available in 60º and 55º flank angles.
- Repairs a wide range of sizes Internal 8mm to 108mm, External 4mm - 152mm.
- Nylon pads are available for NES 21 through to NES 24 internal tools and are to be used during the repair of threads in aluminium and other soft metals.
- NES Nylon Pads are produced from top quality polyamide resins which provide superior toughness, resilience and outstanding mechanical properties over a wide range of operating environments.
